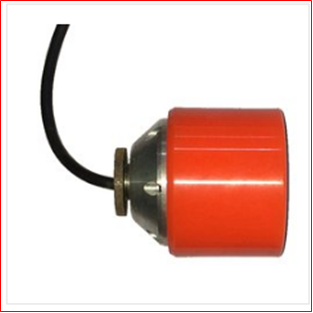

MOTOR SPECIFICATION

• Voltage: 24 v - 36 v - 48 v
• Power : 100- 180 w
• Motor type : Brush less gear less hub motor
• Motor add PU tire net weight : 0.7 kg
• The tire diameter : 83 MM
• Tire width : 60 mm
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed : 24 v 600 - 800 rpm (0.38 A)
• 48 v 800 - 1350 rpm (0.54 A)
• Rated speed : 600 - 1350 rpm
• Rated torque: 3 - 5 NM
• Brakes : Customized
• Load carrying capacity : 30 Kg - 80 Kg
• Rated Efficiency : > 85%
• Noise : <50 DB
• Maximum speed can be achieved : 25 - 35 Km / Hr
• Constant current at Ideal Load : 5 - 15 Ampere
