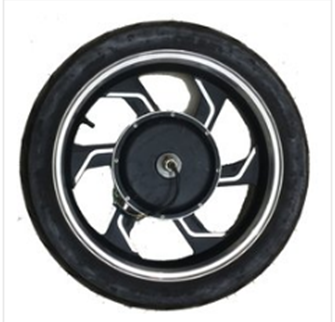

MOTOR SPECIFICATION:

• Voltage : 48 v - 60 v - 72 v
• Power : 500 w - 800 w - 1000 w - 1200 w - 1500 w
• Motor type : Brush less gear less hub motor
• Gross weight : 15.2 kg
• The tire diameter : R17 * 3.00 / R17 * 2.75
• Tire width : 70 mm
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed : 48 v 150 - 200 rpm (0.48 A)
• 60 v 200 - 400 rpm (0.57 A)
• 72 v 250 - 600 rpm (0.68 A)
• Rated speed : 150 - 600 rpm
• Rated torque: 8 - 35 NM
• Brakes : Disc Break
• Load carrying capacity : 60 Kg - 200 Kg
• Rated Efficiency : > 85%
• Noise : <50 dB
• Max. speed can be achieved : 25 - 50 Km / Hr
• Constant current at Ideal Load : 15 - 35 Amp
