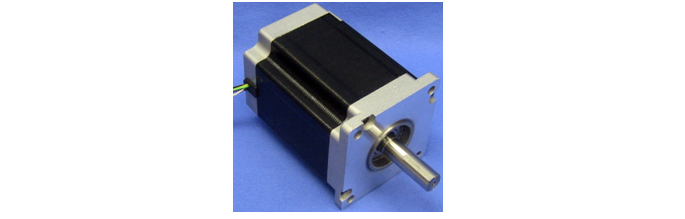

| Step Angle (°) |
1.8 |
Rated Voltage (V) |
3.0 |
| Temperature Rise (°C) |
80 Max (rated current, 2 phase on) |
Rated Current (A) |
5.5 |
| Ambient temperature (°C) |
-20 ~ +50 |
Resistance Per Phase (+10%Ω) |
0.56 (25°C) |
| Number of Phase |
2 |
Inductance Per Phase (+20%mH) |
4.1 |
| Insulation Resistance (MΩ) |
100 Min (500VDC) |
Holding Torque (Kg.cm) |
68.0 |
| Insulation Class |
Class B |
Detent Torque (g.cm) |
160 |
| Max.radial force (N) |
28 (20mm from the flange) |
Rotor Inertia (g.cm2) |
1900 |
| Max.axial force (N) |
10 |
Weight (Kg) |
3.0 |
| No.Of Leads |
4 |
Frame Size |
85x 85 |
| Shaft/ total length |
97 mm |
Shaft dia |
12 .7mm |
