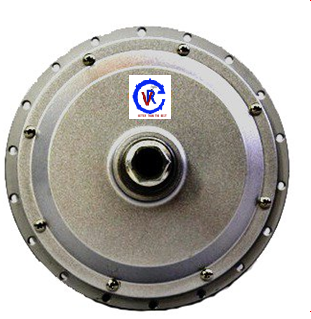

MOTOR SPECIFICATION

• Voltage : 24 v - 36 v- 48 v - 60 v
• Power : 250 w - 350 w - 500 w - 650 w - 800 w
• Motor type : Brush less gear less hub motor
• Gross weight : 6.5 kg
• The tire diameter : 8 inch
• Rim width : Adjustable
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed: 24 v 150 rpm (0.35 A)
• 36 v 250 rpm (0.38 A)
• 48 v 300 rpm (0.42 A)
• 60 v 450 rpm (0.61 A)
• Rated speed : 150 - 450 rpm
• Rated torque: 5-15 NM
• Brakes: Disc Break / Power Break ( Can be Customized )
• Load carrying capacity : 60 Kg - 120 Kg
• Rated Efficiency : > 85%
• Noise : <50 dB
• Max. speed can be achieved : 20 - 25 Km / Hr
• Constant current at Ideal Load : 5-15 Ampere
