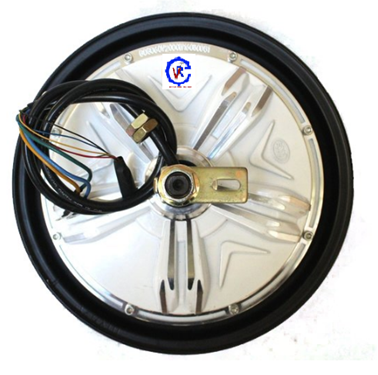

MOTOR SPECIFICATION:

• Voltage : 48 v - 60 v - 72 v - 96 v
• Power : 2000 w
• Motor type : Brush less gear less hub motor
• Gross weight : 9.2 kg
• The tire diameter : 15*3.00 ( 10 * 3 )
• Tire width : 83 mm
• The motor cable length : 20 to 50 cm
• Hall sensor quantity : 3
• No-load speed : 48 v 350 - 450 rpm (0.44 A)
• 60 v 450 - 550 rpm (0.56 A)
• 72 v 550 - 650 rpm (0.63 A)
• 96 v 750 - 850 rpm (0.75 A)
• Rated speed : 350 - 850 rpm
• Rated torque: 15 - 50 NM
• Brakes : Disc Break
• Load carrying capacity : 200 Kg - 1000 Kg
• Rated Efficiency : > 85%
• Noise : <50 dB
• Maximum speed can be achieved : 45 - 70 Km / Hr
• Constant current at Ideal Load : 30 - 45 Ampere
