Features:

• Control Supply – 230 V AC, Single phase ± 10 %.
• Input – mV (mV / V) From Load cell Bridge.
• Excitation for Load Cell – 10.00 V DC (± 0.01 VDC)
• Output – 4 20 mA (Load 500 Max) or 0 -10 Vdc (2mA Max)
• Applications – Interfacing Load cell with SCADA / PLC automation.

SPECIFICATION:

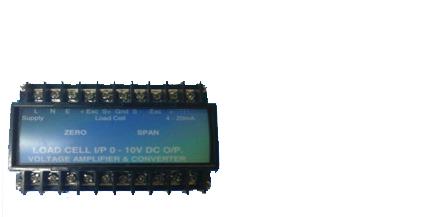

Load cell (Bridge) Converter model VRE 4-20mA is a highly reliable, accurate Load cell to mA or VoltageAmplifier. VRE 4-20mA provides highly stable excitation voltage to load cell (bridge) so as to getmV output and provide amplified output in form of DC current or voltage in specified range ( 4-20mA). VRE 4-20mA output is factory scaled as per Load cell specifications provided. The output of Load cell Converter can be connected to any standard industrial control systems like controllers, PLC, DCS etc.It can be connected with Isolator to provide multiple outputs for control and recording.This combination also provides optical and galvanic isolation between field inputs and control room VRE 4-20mA is supplied in compact DIN rail mount enclosure which makes it convenient to mount in any standard Industrial Panel.
